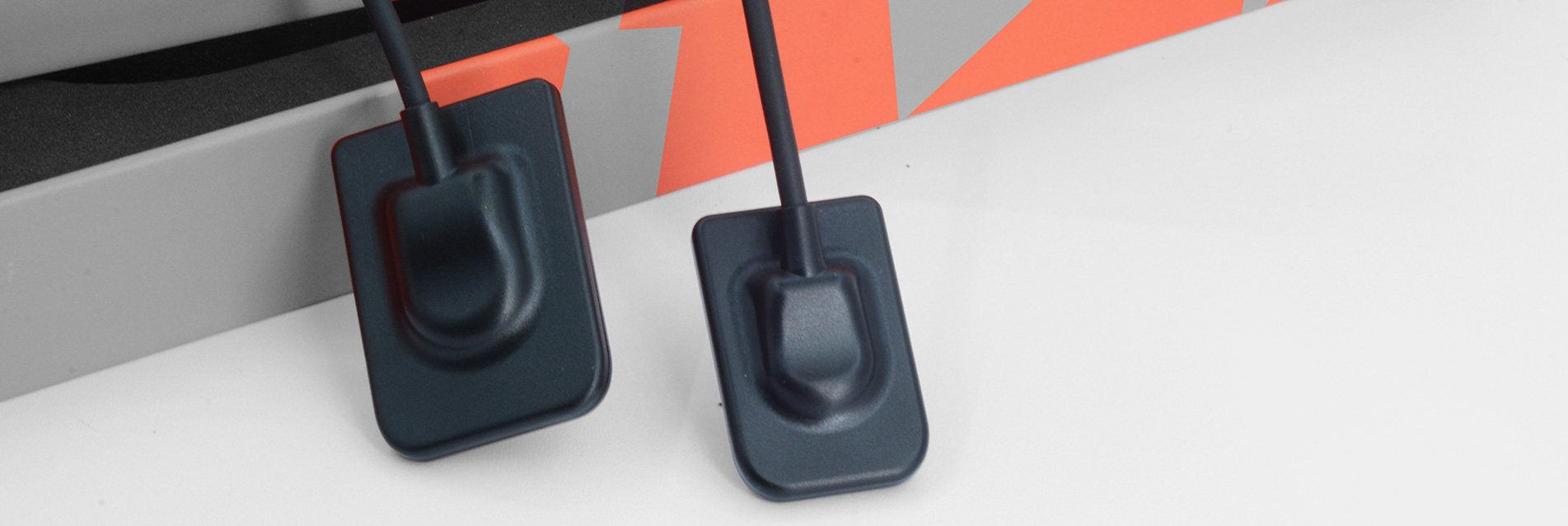

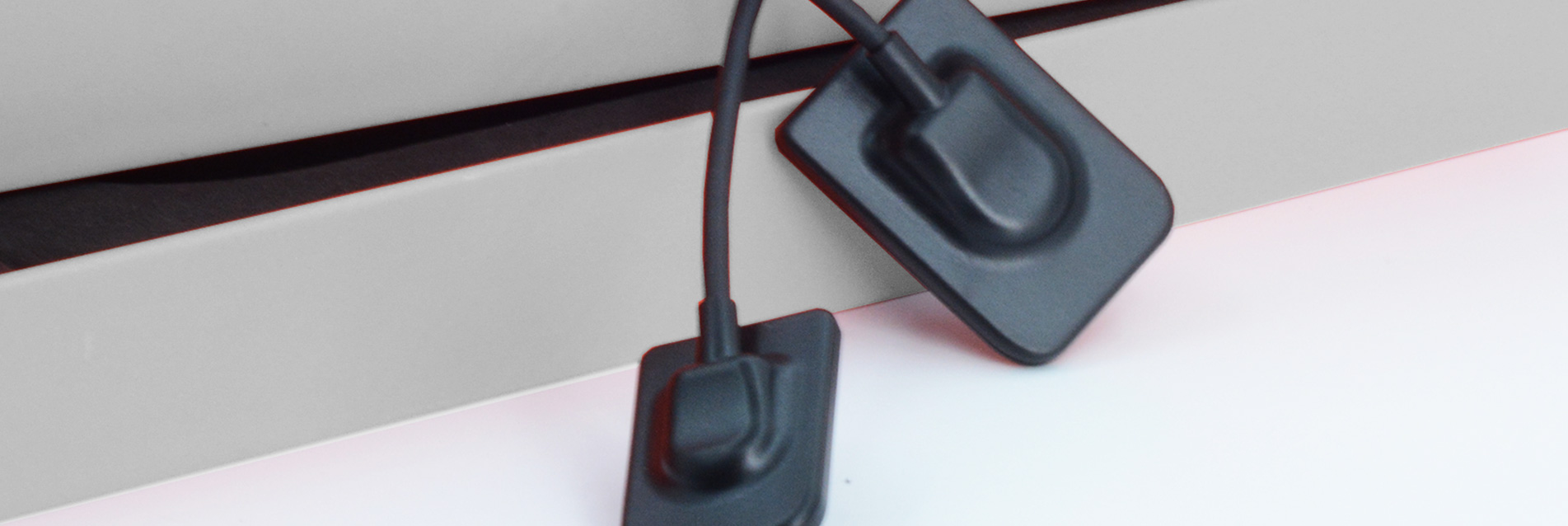

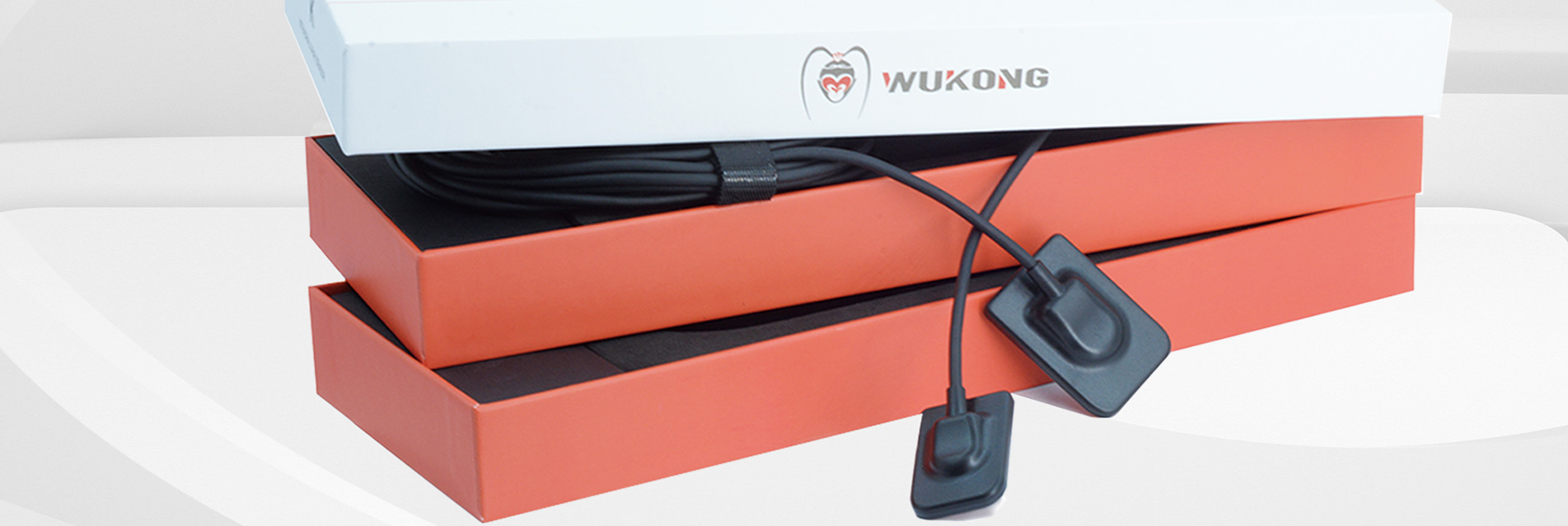

Dental RVG sensor

Wukong Dental RVG sensor Software is indicated to acquire radiological images to be stored, visualized and manipulated for evaluation and analysis by dentists.The software provides length measurement,size zoom, achieving and "one-click image processing: Diagnosis assistance, mail for-warding drawing and report transmission can convenient communication between doctors and patients.

Dental RVG sensor

Feature Parameter Related Products Inquiry

Feature:

1. Fitting Finger Radian Design:More humanized, more caring for the use feelings of medical staff.

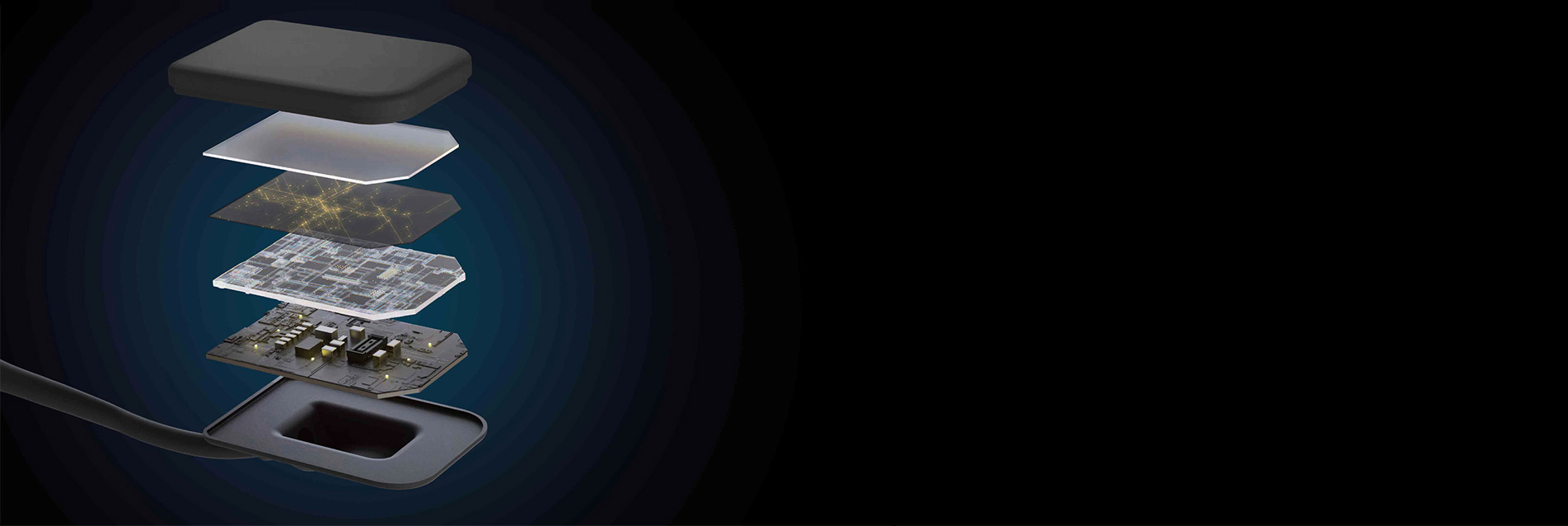

2. Ultra-thin:4.4 mm digital sensor, High Resolution (HR) or Low Dose (LD) Scintillator Option

3. 2 Sizes #K1 universal, #K2 adult

4. Comfortable :Rounded corners and edges for improved patient experience

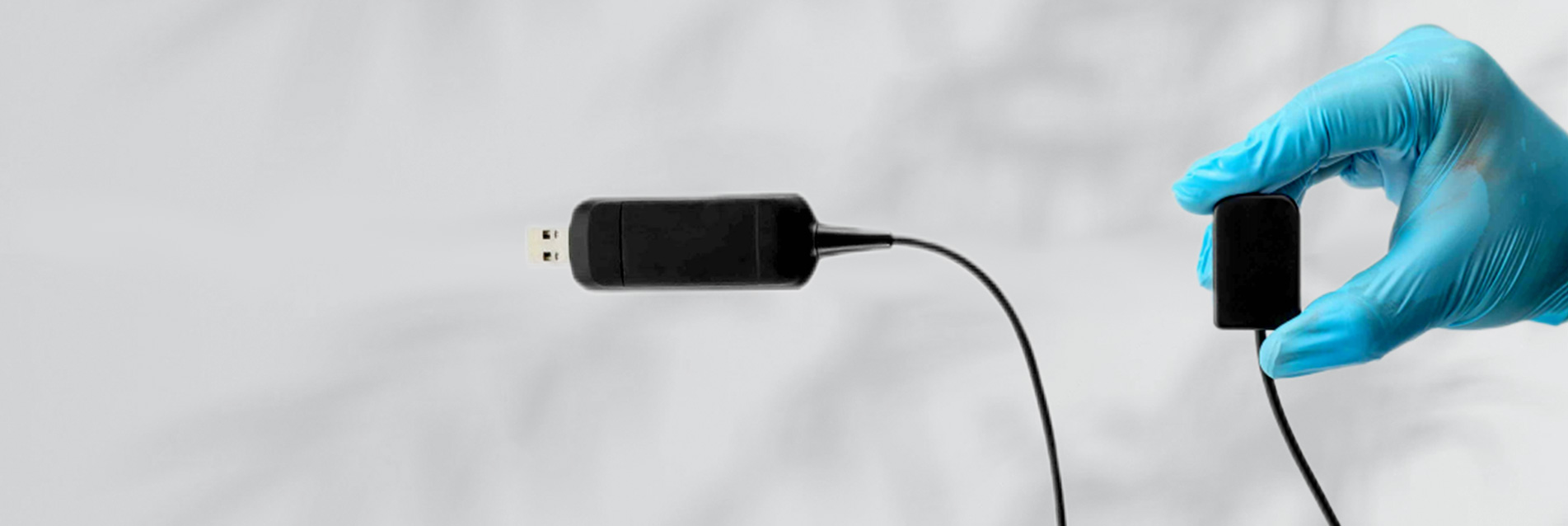

5. Plug and Play: Direct USB plug and play connection for real-time image display

Parameter :

Item	K1	K2
Mechanical Dimensions(mm)	25.0×38.5×4.5	31.0×45.0×4.5
Active Area(mm²)	20×30	26×36
Pixel Matrix	(1.5 M)1000×1500	(2.34 M)1300×1800
Data Interface	Direct USB,USB 2.0	Direct USB,USB 2.0
Sensor Technology	APS CMOS	APS CMOS
Scintillator	Directly deposited Csl:Tl	Directly deposited Csl:TI
Length of Cable (m)	Standard 3m /Option 5m	Standard 3m /Option 5m
Pixel Pitch(μm)	20	20
Line Pair Resolution(lp/mm)	25	25
Gray Level	16 bit	16 bit
Exposure Mode	Smart AED	Smart AED
Ingress Protection	IP68 for Soak disinfection	IP68 for Soak disinfection
Additional	Support TWAIN protocol	Support TWAlN protocol
Operation System	Windows 7 and above,32/64 bit	Windows 7 and above,32/64 bit
